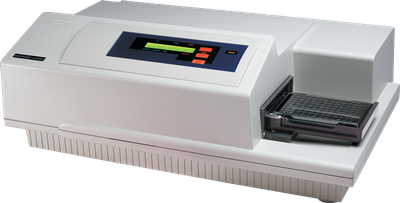

Molecular Devices
- Gemini XPS
최적의 형광 파장 영역과 Dual Monochromator 방식을 채택하여
최고의 감도를 제공하는 Fluorescence Microplate Reader
Gemini XPS는 최적의 형광 파장 영역을 제공하여 대부분의 형광실험이 측정가능하며,
PMT Sensor 의 최적화를 통하여 최고의 감도를 제공하는 형광 측정 장비입니다.
⊙ Fl
Excitaton : 250nm - 850nm
Emission : 360nm - 850nm
⊙ Xenon Flash Lamp
⊙ Dual Monochromator
⊙ 6 ~384 -Well Formats
⊙ Top Read
⊙ TRF, LUM [Secondary Mode]
⊙ Shaking
⊙ Temp. Control [~45'C]
⊙ Endpoint / Kinetic / Spectrum Scan/ Well Scan
General Specifications | ||
Dimensions (in.) | 8.6 H x 22.8 W x 15 D | |
Dimensions (cm) | 22 H x 58 W x 38 D | |
Weight | 35 lb (16 kg) | |
Power source | 100-240 VAC, 50/60 Hz | |
Performance Specifications | ||
Wavelength Range - Excitation | 250-850 nm | |
Wavelength Range - Emission | 360-850 nm | |
Wavelength Selection | Monochromator, tunable 1.0 nm increments | |
Wavelength Bandwidth (Excitation and Emission) | 9 nm | |
Wavelength Accuracy | < ± 2.0 nm | |
Top Read Sensitivity | 3.0 fmol/well FITC 200 µl in 96 wells | |
Light Source | Xenon flash lamp | |
Microplate Read Time | ||
Normal Mode | 96 wells | 15 seconds |
384 wells | 45 seconds | |
Dynamic Range | 6 orders of magnitude | |
Temperature Range | Ambient + 4 °C up to 45 °C | |
Temperature Uniformity (Microplate) | ± 1 °C @ 37 °C |
